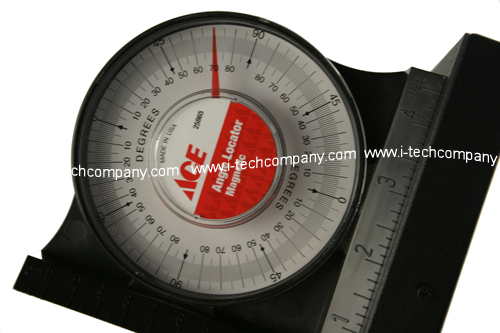

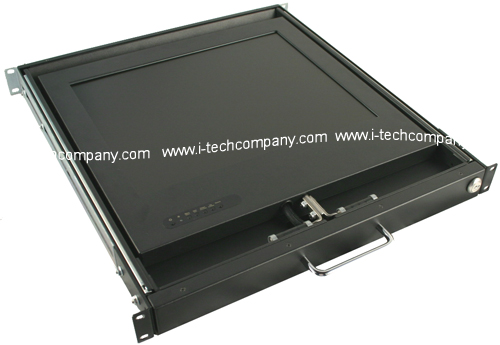

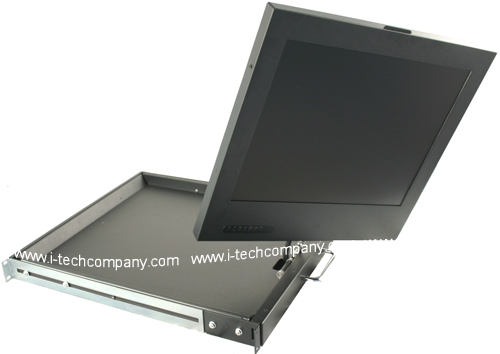

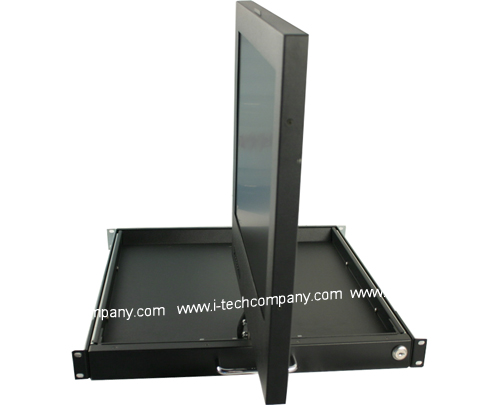

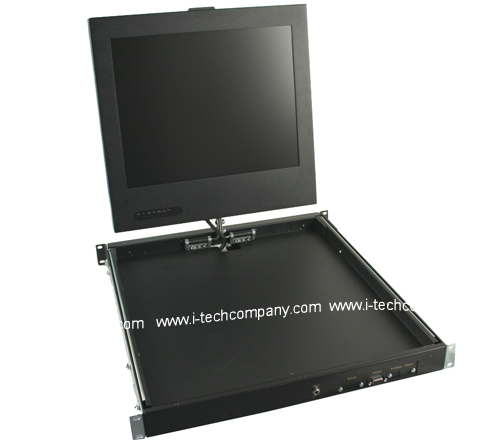

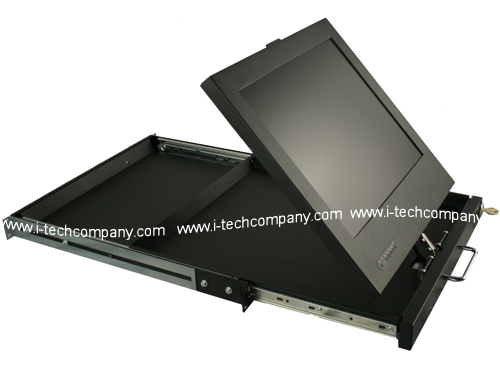

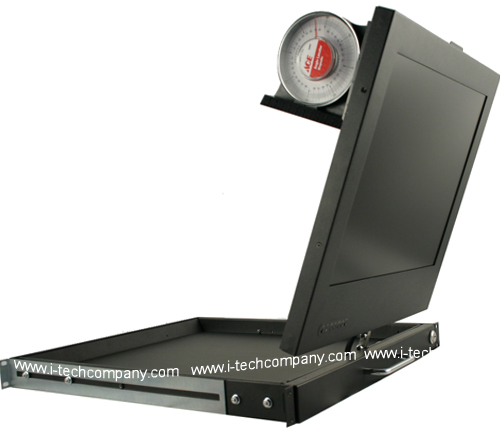

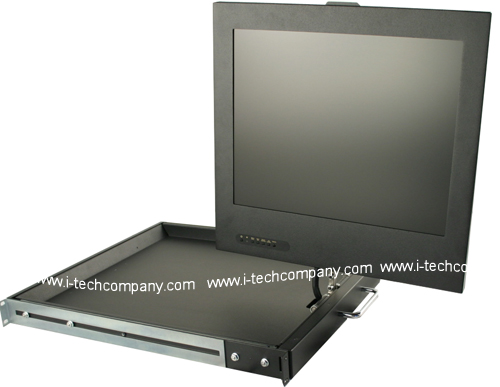

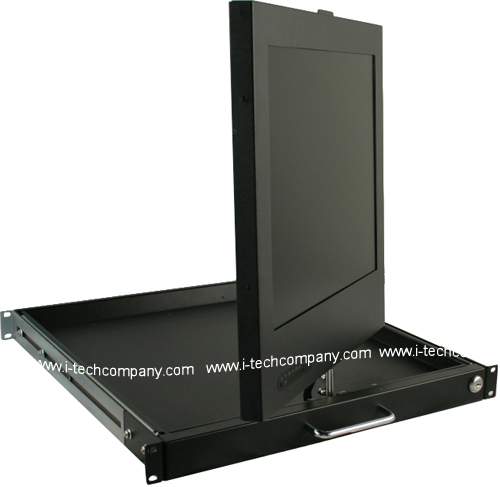

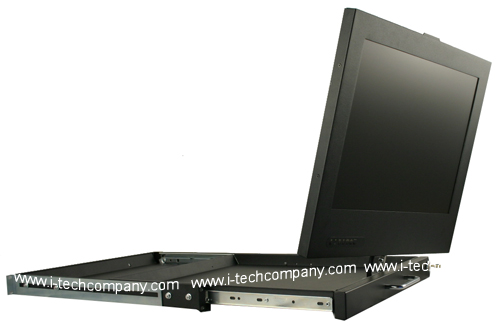

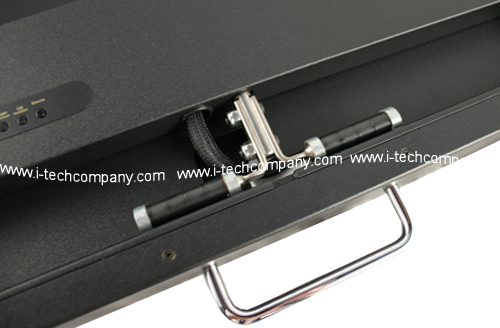

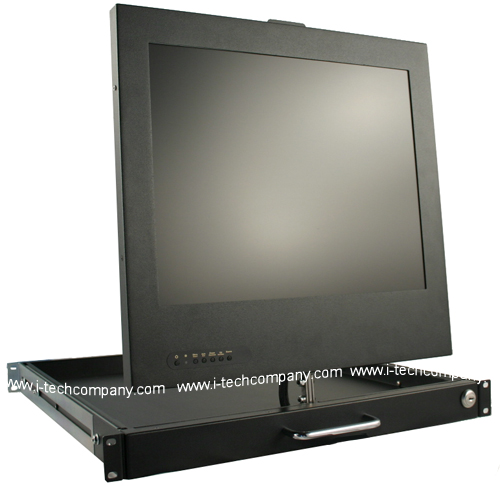

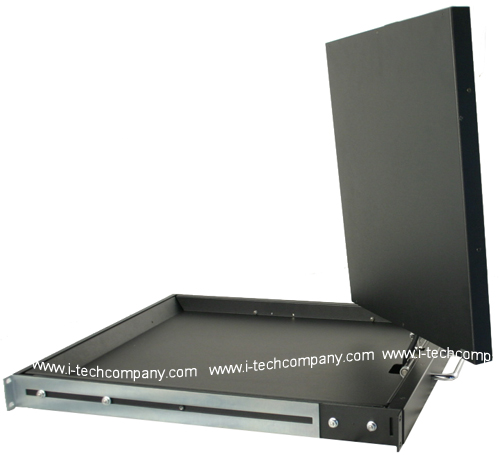

The DRP Series is an high performance 1U LCD display drawer sporting 17”, 17” Wide and 19” LCD Monitors. These monitors have high contrast ratios and wide viewing angles, with resolution at SXGA (1280X1024) for the 17” & 19” and WXGA (1440x900) for the 17” Wide. The unique design of the DRP (Pivot Display Drawer) is just that, It pivots. The drawer starts out laying fat and put away in its 1U drawer. When needed the monitor slides out and the display portion of the monitor rotates up. You can adjust the monitor in almost any position from 0 to 119 Degrees. The Heavy-Duty Torque hinge holds it in place. The display Pivots up to 60 Degs along the monitors center axis. This gives the user 3 degrees of freedom. Integrated slides along with adjustable mounting brackets allow installation in any standard 19” Rack enclosure. The drawer is held closed with a keyed cam lock. The Standard Finish is Black Powder Coated Lite Texture, but it can be customized to any color or logo.
Enclosure
• Mounts in standard 19-inch rack cabinets 20” depths • Utilizes only 1RU (1.75”) • RSI Design (Rapid Start Installation). Installation takes Less than 5 minutes! • Rugged all metal construction designed to satisfy Industrial, Commercial and Military requirements • Compact enclosure for rackmount applications
Display:
• 17, 17” Wide and 19” Diagonal Active Matrix TFT LCD Displays • Featuring Samsung & LG Technologies • Large Viewing Area
Video Controller:

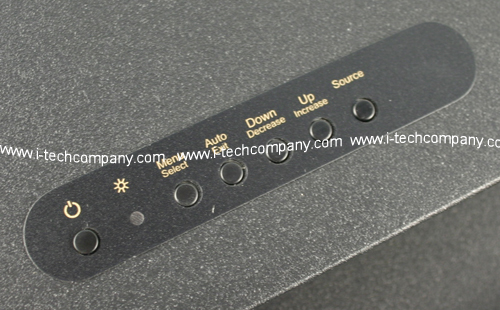

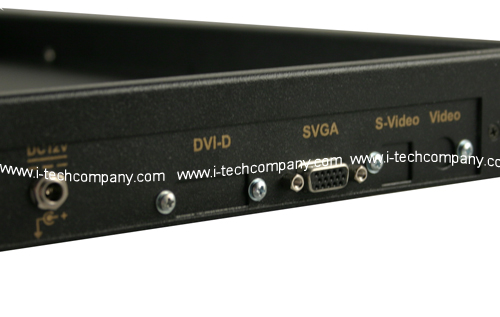

• Standard Analog RGB, DVI-D, S-Video, and CVS inputs) • OSD (On Screen Display) Monitor Controls
Power:
• +12 VDC Operation • Low Power Consumption
Other Features / Options:
• Abrasion Resistant Lens Cover.
